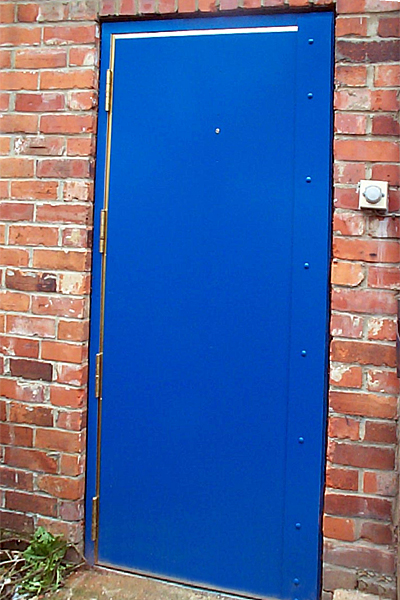

Mod III High Security Door & Frame
The
Mod. III has been designed to provide maximum security whilst still retaining
the qualities of an external exit.
At the heart of the Mod. III is the steel “wrap around” chassis. Welded to this chassis there are two lengths of square box section which houses the solid steel locking bolts. Having the steel bolts within in continuous fixed housing provides maximum strength against attack.
To compliment the security even further, we install a full length “U shape” security hinge. This hinge has been designed to “wraparound” the door and offer an incredibly high level of resistance against force to the hinge side of the door.
The wrap around chassis and hinge have been constructed to slide over the timber core, but they allow just enough space to insert a “sheet of steel” to external face of the door. This sheet fits behind both “wrap around” areas.
The frame is also clad with steel plate for additional strength and is secured to the brickwork using 150mm bolt fixings.
|
High security 3 point locking system, complete with a deadlocking facility.
|
The full-length “U shape” security hinge with integral hinge bolts and our “anti-force” Z bracket.
|
Once locked, the MOD III provides a steel barrier to protect your property and contents.
|
Special Features> STEEL CLAD DOOR AND FRAME
|
The Safest OptionA monitored lock function is available as an option. By fitting a micro-switch to the lock and connecting this to your alarm system, the alarm cannot be switch off until the deadlock has been opened. This ensures instant exit availability during working hours should there be an emergency. The panic bar option should always be considered when the door is used on fire exit routes. |
Please note: the
local fire authority should be consulted to ascertain fire regulations.
Variations to specification are available. Please
contact us for a site
survey or advice of available alternatives.
